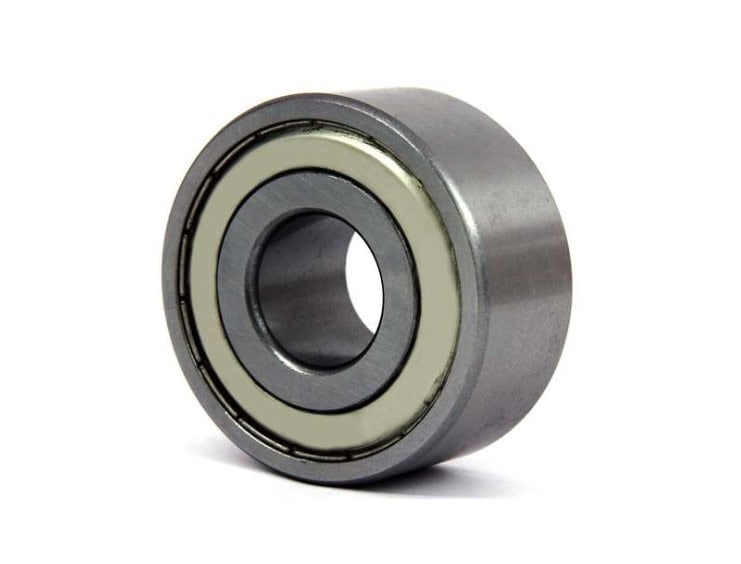

32002Z Economy Double Row Angular Contact Ball Bearing With Two Metal Shields 10x30x14mm
Double Row Angular Contact Ball Bearings: Provide stiff bearing arrangements and can accommodate radial and axial loads in either direction and tilting moments. They have both inner and outer ring raceways that are displaced relative to each other in the direction of the bearing axis.
| INFORMATION | |
|---|---|
| Inside Diameter | 10mm |
| Outside Diameter | 30mm |
| Width | 14mm |
| Brand | Premium Economy |
| Clearance | Standard |
| Seals / Shields | Metal Shielded |
| TECHNICAL SPECIFICATIONS | |
|---|---|
| a | 16mm |
| B | 14mm |
| Bearing With Seals | 32002RS |
| Bearing With Shields | 32002Z |
| d | 10mm |
| D | 30mm |
| d2 | 15.8mm |
| D2 | 25mm |
| Da max | 25.6mm |
| da max | 15.5mm |
| da min | 14.4mm |
| Dynamic Load C | 7.61 kN |
| kr | 0.06 |
| Limiting Speed Bearing with Seals | 17000 rpm |
| Limiting Speed Bearing with Shields | 24000 rpm |
| Load Limit Pu | 0.183 kN |
| r1,2 min | 0.6mm |
| ra max | 0.6mm |
| Static Load CO | 4.3 kN |
Stock Status: In Stock
- Premium Economy
£13.60 ex VAT
