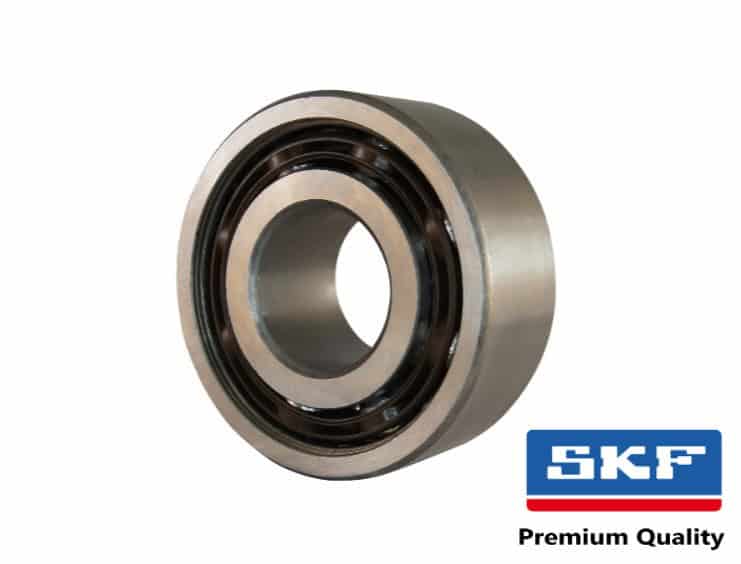

SKF 3204A Double Row Angular Contact Ball Bearing With a Steel Cage 20x47x20.6mm
Double Row Angular Contact Ball Bearings: Provide stiff bearing arrangements and can accommodate radial and axial loads in either direction and tilting moments. They have both inner and outer ring raceways that are displaced relative to each other in the direction of the bearing axis.
| INFORMATION | |
|---|---|
| Inside Diameter | 20mm |
| Outside Diameter | 47mm |
| Width | 20.6mm |
| Brand | SKF |
| Clearance | Standard |
| Seals / Shields | None |
| Product Type | Angular Contact Bearing |
| TECHNICAL SPECIFICATIONS | |
|---|---|
| a | 28 |
| B | 20.6mm |
| Bearing With Metal Cage | 3204A |
| d | 20mm |
| D | 47mm |
| d2 | 27.7mm |
| D2 | 40.9mm |
| Da max | 41.4mm |
| da min | 25.6mm |
| Dynamic Load C | 20.4 kN |
| Fatigue Load Limit Pu | 0.55 kN |
| kr | 0.06 |
| Limiting Speed | 14000 rpm |
| Polyamide Cage | 3204ATN9 |
| r1,2 min | 1mm |
| ra max | 1mm |
| Reference Speed | 16000 rpm |
| Static Load CO | 12.9 kN |
Stock Status: In Stock
- SKF
£44.98 ex VAT
