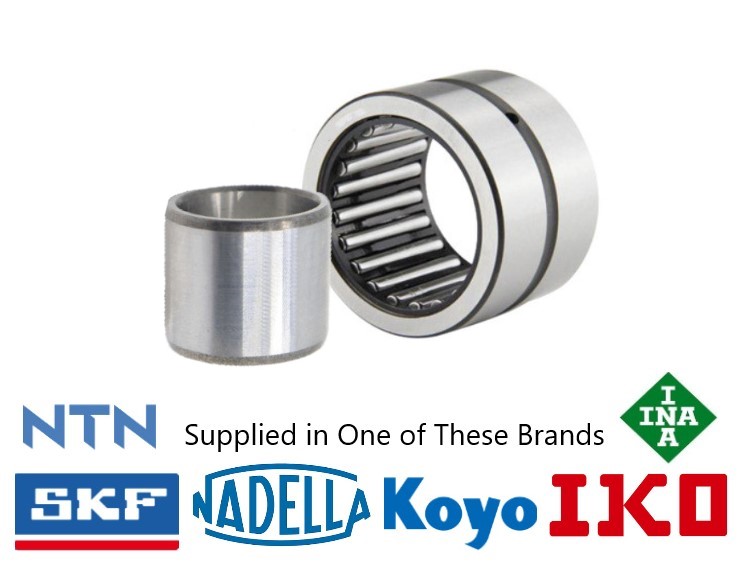

NA4901 Branded Needle Roller Bearing With Shaft Sleeve 12x24x13mm
Needle Roller Bearings With Flanges And a Shaft Sleeve: Manufactured with flanges in the outer raceway to assist the centralisation on the needle bearing race. They have a high load capacity and can operate at high speeds. The NA type is supplied with an inner ring where the RNA type is supplied without an inner ring.
| INFORMATION | |
|---|---|
| Inside Diameter | 12mm |
| Outside Diameter | 24mm |
| Width | 13mm |
| Brand | Premium Branded |
| Seals / Shields | None |
| TECHNICAL SPECIFICATIONS | |
|---|---|
| B | 13mm = 0.5118 inch |
| d | 12mm = 0.4724 inch |
| D | 24mm = 0.9449 inch |
| Da max | 22mm |
| da min | 14mm |
| Dynamic Load C | 9.9 Kn = 2225.7194 lbf |
| F | 16mm |
| Limiting Speed | 26000 rpm |
| Load Limit Pu | 1.46 kN = 328.2374 lbf |
| r1,2 min | 0.3mm |
| ra max | 0.3mm |
| Reference Speed | 22000 rpm |
| s max | 0.5mm |
| Static Load CO | 12.2 kN = 2742.8058 lbf |
Stock Status: In Stock
- Premium Branded
£12.72 ex VAT
