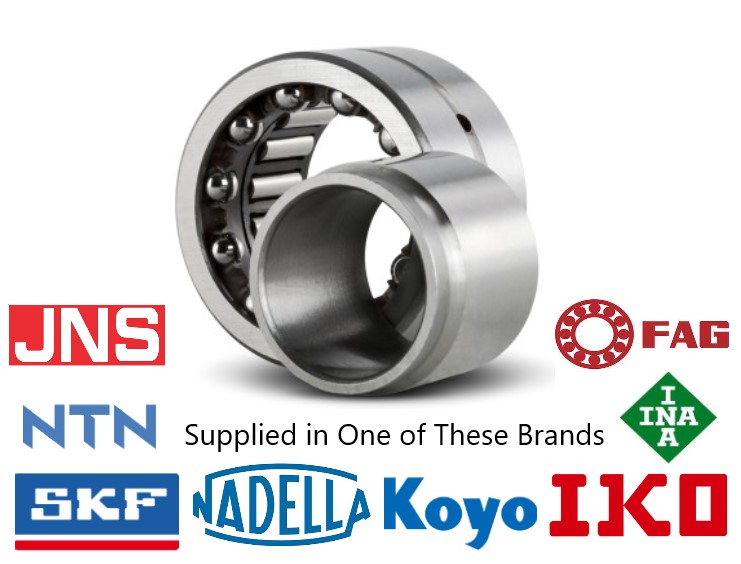

NKIA5904 Branded Needle Roller/Angular Contact Ball Bearing 20x37x23mm
Needle Roller / Angular Contact Bearings: These bearings have a high running accuracy, permit relatively high speeds and can support high radial loads and moderate axial loads. They are suitable for applications with a very small radial design envelope, where the raceway on the shaft is designed as a rolling bearing raceway.
| INFORMATION | |
|---|---|
| Inside Diameter | 20mm |
| Outside Diameter | 37mm |
| Width | 23mm |
| Brand | Premium Branded |
| TECHNICAL SPECIFICATIONS | |
|---|---|
| Abutment and illet dimension ra max (mm) | 0.3mm |
| Abutment and illet dimensions Da max (mm) | 35mm |
| Abutment and illet dimensions da min (mm) | 22mm |
| Axial Dynamic C | 3.79 kN = 852.0683 lbf |
| Axial Static CO | 4.21 kN = 946.4928 lbf |
| B | 23mm = 0.9055 inch |
| d | 20mm = 0.7874 inch |
| D | 37mm = 1.4567 inch |
| F | 25mm |
| Fatigue Axial Load Limit Pu | 0.176 kN = 39.5683 lbf |
| Fatigue Radial Load Limit Pu | 3.35 kN = 753.1475 lbf |
| Limiting Speed | 17000 rpm |
| r1,2 min | 0.3mm |
| Radial Dynamic C | 21.6 kN = 4856.1151 lbf |
| Radial Static CO | 28 kN = 6294.964 lbf |
| Reference Speed | 15000 rpm |
Stock Status: In Stock
- Premium Branded
£31.05 ex VAT
