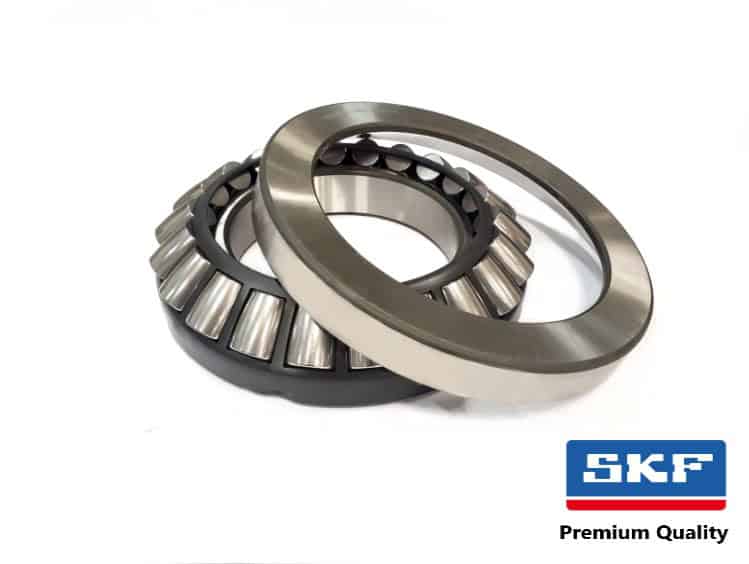

29413E SKF Spherical Roller Thrust Bearing 65x140x45mm
SKF Spherical Roller Thrust Bearings: These bearings are thrust bearings that have self aligning ability as as such will tolerate misalignment and deal with both axial and radial loads simultaneously.Spherical Roller Thrust Bearings:Â These bearings are thrust bearings that have self aligning ability as as such will tolerate misalignment and deal with both axial and radial loads simultaneously.
| INFORMATION | |
|---|---|
| Inside Diameter | 65mm |
| Outside Diameter | 140mm |
| Width | 45mm |
| Brand | SKF |
| Clearance | Standard |
| Seals / Shields | None |
| TECHNICAL SPECIFICATIONS | |
|---|---|
| B | 29.5mm |
| B1 | 39.8mm |
| C | 22mm |
| d | 65mm = 2.559 inch |
| D | 140mm = 5.512 inch |
| d1 | 120mm |
| D1 | 91.5mm |
| Da max | 2mm |
| da min | 100mm |
| db1 max | 72mm |
| Dynamic Load C | 455 kN = 102293lbf |
| Fatigue Load Limit Pu | 137 kN = 30800lbf |
| H | 45mm = 1.772 inch |
| Ha min | 117mm |
| Limiting Speed | 4800 rpm |
| Minimum Load Factor A | 0.11 |
| r1,2 min | 2mm |
| ra max | 2mm |
| Reference Speed | 2600 rpm |
| S | 42mm |
| Static Load C0 | 1080 kN = 242806lbf |
| Weight Kg | 3.2 Kg |
Stock Status: In Stock
- SKF
£451.85 ex VAT
