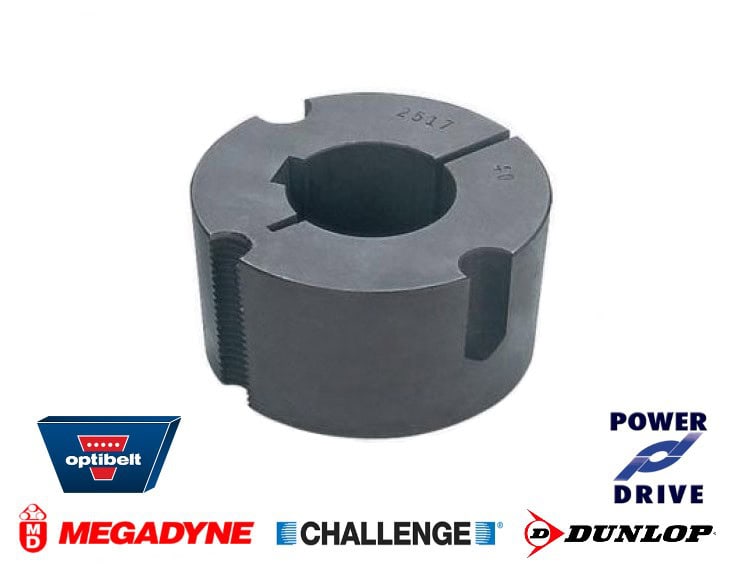

TL1008-11 Tapered Locking Bush With a 11mm Bore

TL1008-11 Tapered Locking Bush With a 11mm Bore

Taper Lock Bush: Is a locking mechanism commonly used in power transmission drives for locating pullys, sprockets, and couplings to shafts. The taper lock bush is pre-bored and keyed to match the required shaft and keyway diameters, the ouside of the bush is tapered to match the component bore that is to be located on the shaft.

INFORMATION
Outside Diameter35mm
Width22.2mm
BrandExcellent Quality
Bore11mm
Screw Size1/4" BSW
Screw Quantity2
Keyway4mmx1.8mm
TECHNICAL SPECIFICATIONS
Bore Dia.11mm
D35mm
F22.2mm
Keyway Depth1.8mm
Keyway Width4mm
Screw Quantity2
Screw Size1/4" BSW
Screw Tightening Torques5.6 Nm
NEXT DAY DELIVERY | Stripe | PayPal | Visa | Mastercard

£4.54 ex VAT
